DALTEC · HIGH-TEMPERATURE WIRE
AFR250 Silver-Plated High-Temperature Wire
A focused product range built around stranded silver-plated copper conductors and PTFE film-wrapped insulation for high-temperature electrical connection discussions.
-60°C to +250°C
Published operating temperature
0.035–2.5 mm²
15 common sizes
3 / 4 / 5 / 6 mm²
Custom needs can be discussed
0.08 mm
Silver-plated copper fine wires
CORE PRODUCT
A clear, technical basis for initial selection.
DALTEC focuses on AFR250 silver-plated high-temperature wire, published specifications and practical product discussion.
-60°C to +250°C
Published operating temperature
0.035–2.5 mm²
15 common sizes
PTFE film-wrapped
Published insulation construction
AFR250
AFR250 Silver-Plated High-Temperature Wire
Stranded silver-plated copper conductors, PTFE film-wrapped insulation and published technical data for high-temperature electrical connections.
Explore AFR250
AFR250 SPECIFICATION SELECTOR
Select a common size, review its parameters
The 15 published common sizes cover 0.035 to 2.5 mm².
- Size
- 0.15 mm²
- AWG
- AWG25
- Conductor construction
- 30/0.08
- Conductor diameter
- 0.50 mm
- Insulation thickness
- 0.15 mm
- Finished diameter
- Ø0.85±0.05 mm
- Rated current
- 0.95 A
- Maximum current
- 1.50 A
- DC resistance
- 150 Ω/km
- Rated voltage
- 250V

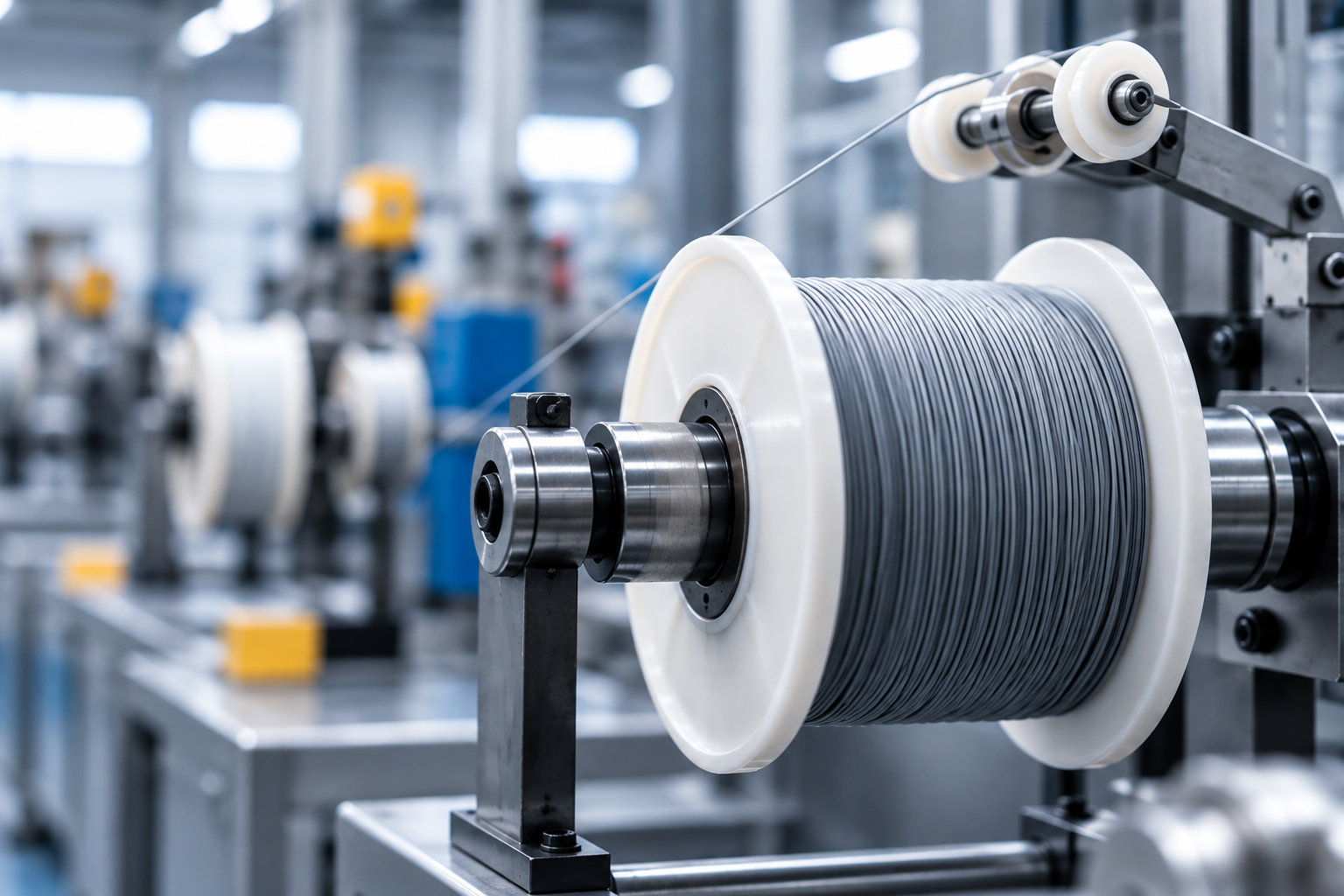

MANUFACTURING & QUALITY
Manufacturing and quality information
Material management, process control, dimensional checks and finished-product inspection remain central to the work.
APPLICATIONS
Application discussions start with actual conditions.
Review actual service conditions, installation space and connection requirements before selection.
ENGINEERING SUPPORT
Discuss the information that matters.
Working temperature, voltage, current demand, conductor area, installation space, colour, length and quantity provide a practical basis for a product discussion.
TECHNOLOGY & RESOURCES
Technical notes for product understanding.
Published technical notes and website information updates.
TECHNICAL DOCUMENTS
Request product information.
Technical documents are handled through an application and are not directly exposed for download on the public site.
